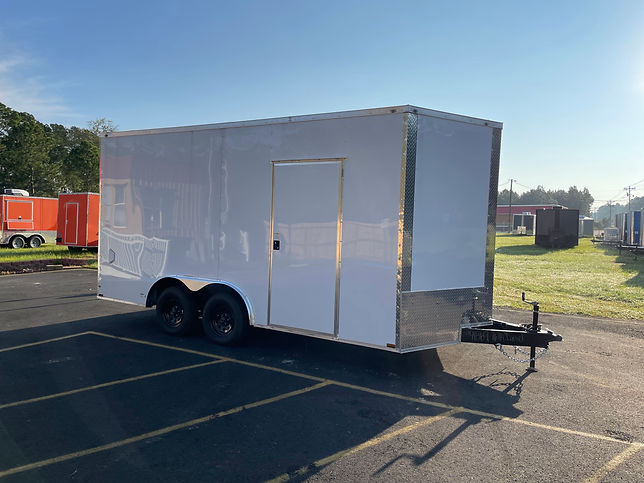

Enclosed Cargo Trailers
Standard Features On All Trailers
-
16″ o.c walls and floor crossmembers
-
1x 1 1/2″ steel tube in walls and ceiling
-
3/8 plywood wall liner
-
3/4 plywood floor decking
-
Drop leaf spring axles/EZ lube
-
LED strip trail lights
-
3500lb axles (not 5 W and 6 W single axles)
-
Chrome center lug cover
-
V-nose with ATP vertical trim
-
024 metal: white/black/red/silver/pewter
-
24″ ATP stoneugard on v nose
-
galvalum roof
-
z tech undercoated frame
-
Plywood painted underneath
-
Silver mod radial
-
2000lb tongue jack
-
Choice of ramp door or double barn door
-
Side vents
6 & 7 Wide Sizes and Features
Sizes
-
6 x 10 SA
-
6 x 10 TA
-
6 x 12 SA
-
6 x 12 TA
-
6 x 14 SA
-
6 x 14 TA
-
7 x 10 SA
-
7 x 12 SA
-
7 x 12 TA
-
7 x 14 SA
-
7 x 14 TA
-
7 x 16 TA
-
7 x 18 TA
-
7 x 20 TA
Standard features
-
6'3" interior height
-
single axles use 2x3 main rail
-
Tandem Axles uses 2x4 main rail
-
4-wat bargman plug for single axle 2" coupler
-
7-Way Plug and electric brakes for tandem axles and 2" 5/16 coupler
-
32"x68" RV side Door
-
3,500 LBS Drop leaf spring axles
8.5 Wide Sizes and Features
Sizes
-
8.5 x 16 TA
-
8.5 x 18 TA
-
8.5 x 20 TA
-
8.5 x 22 TA
-
8.5 x 24 TA3
-
8.5 x 26 TA3
-
8.5 x 28 TA3
-
8.5 x 30 TA3
-
8.5 x 32 TA3
-
8.5 x 34 TTA3
-
8.5 x 36 TTA3
Standard features
-
6'6" Interior Height
-
6" I-Beam Frame
-
4-D-Rings
-
36"x75" RV Door
-
2 Dome Lights
-
Beavertail With Ramp
-
24ft length and above Trailers come with 5,200 lbs. axles
-
26ft length and above come with amber turn signals over wheel well and with DOT Tape
-
28ft length and above come with Double 6" I-Beam Frame
-
30ft length and above have 8" I-Beam Frame and Extended tongue
-
34ft length and above come with triple 5,200 lbs. axles
